The Equipment was provided as per with Standard Industry Design Practices.

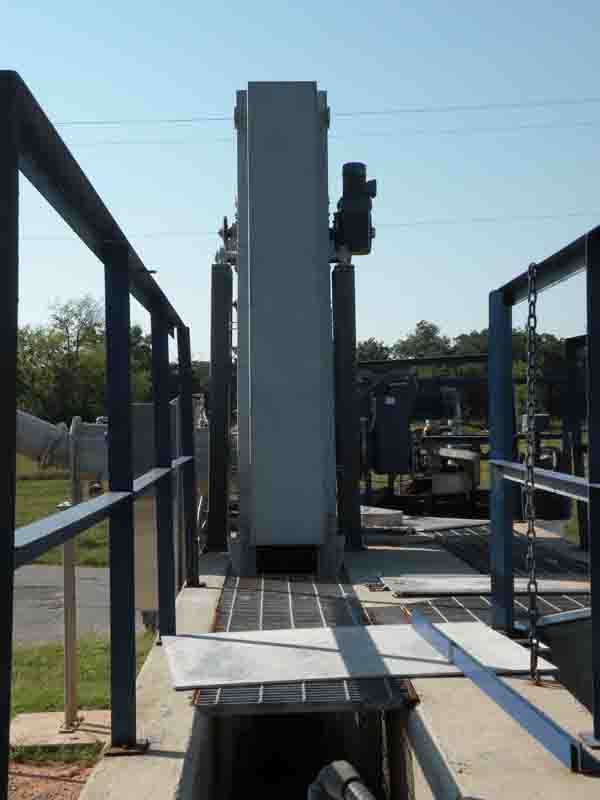

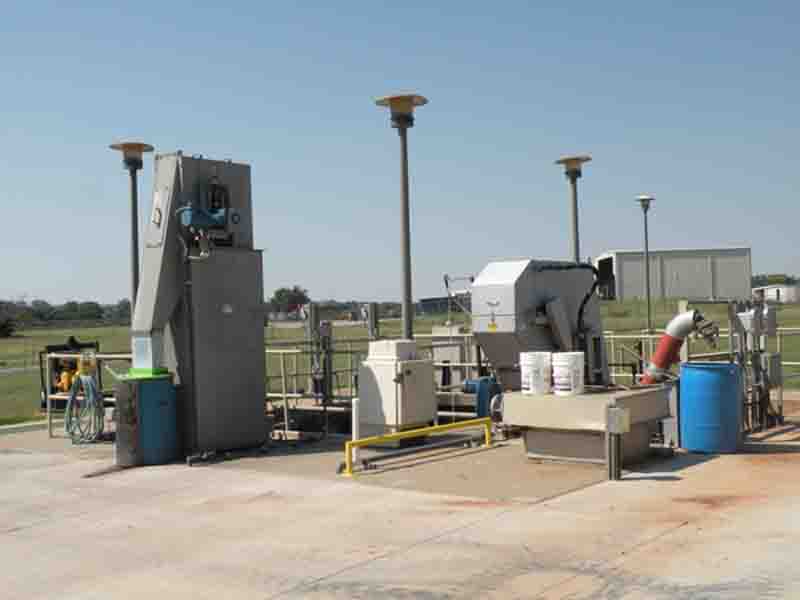

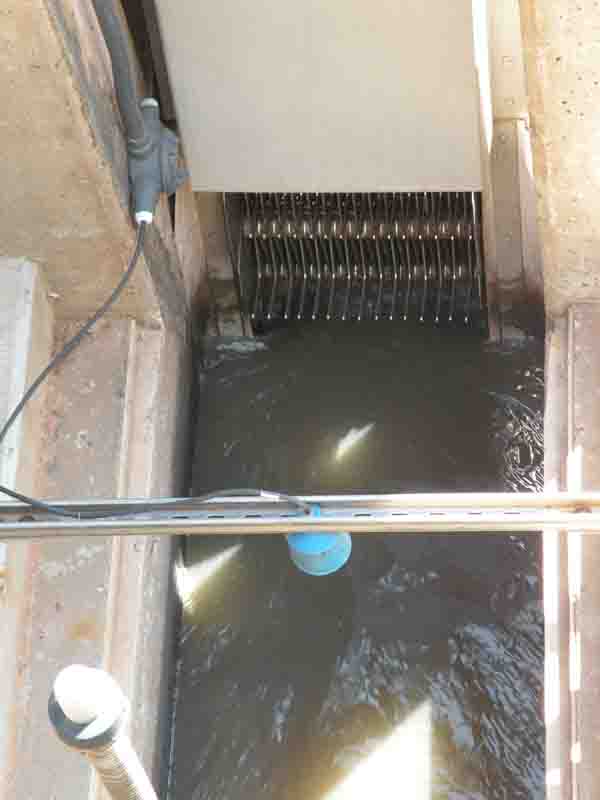

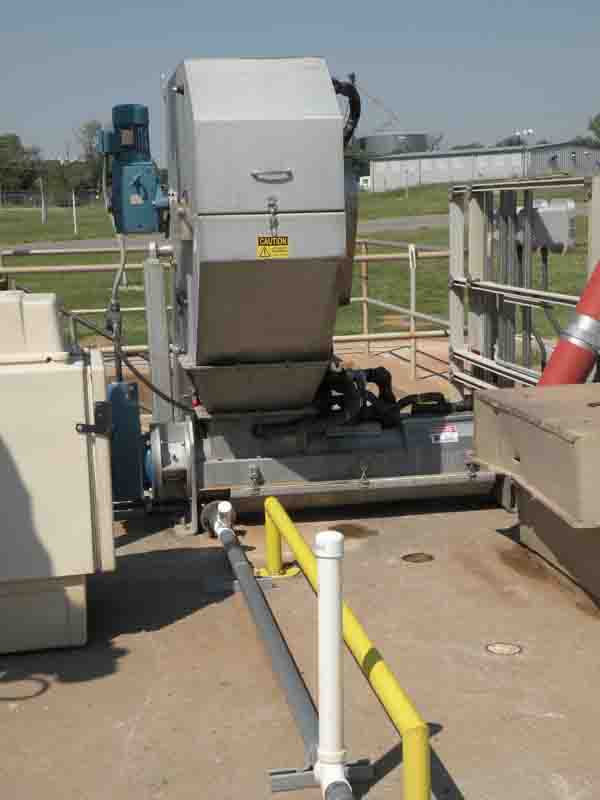

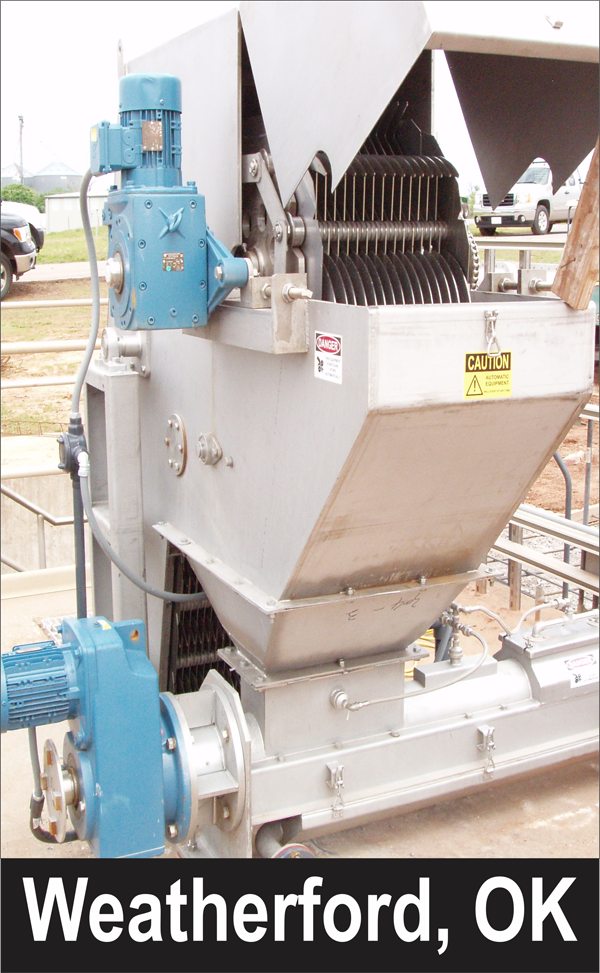

Bar Screen :-   FairField Model Stream Guard,Primarily Constructed Of Type 304 Stainless Steel,And Designed as Follows:-

• Channel Width : 2'- 0" ft.
• Channel Depth (Max): 13'- 6 15/16" ft.
• Lift : approx . 16'- 4 15/16" .
• Bar Rack Angle Of Incline : 75° Degrees
• Bar Spacing : 3/8" Clear Openings
• Bars : 1/8" 304 SS TEETH.
• Peak Flow Capacity : 5.0 MGD

The Equipment was provided as per with Standard Industry Design Practices.

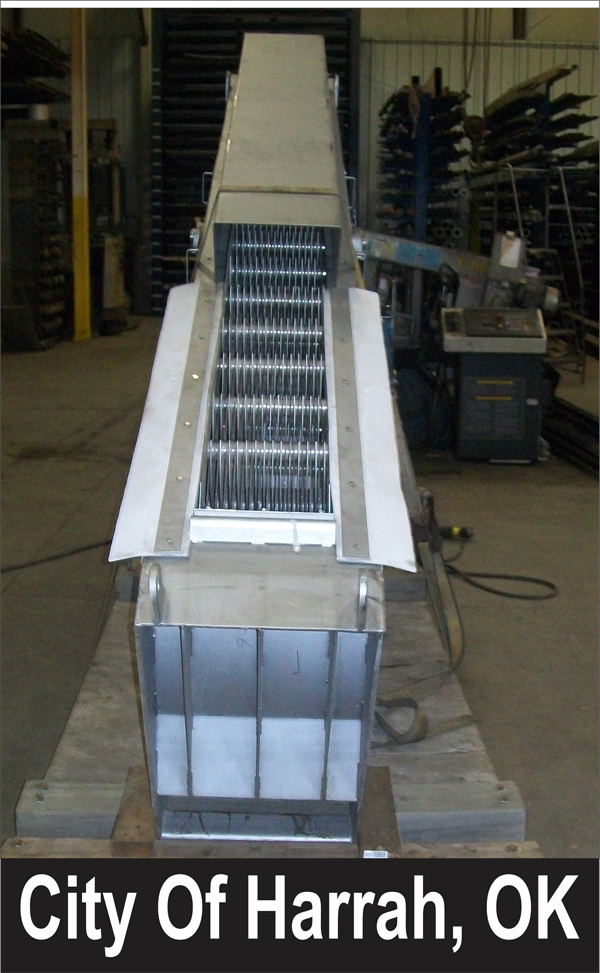

(1) Bar Screen :-   FairField Model Stream Guard,Primarily Constructed Of Type 304 Stainless Steel,And Designed as Follows:-

• Channel Width : 1'- 6" ft.
• Channel Depth : 3'- 0" ft.
• Lift : approx . 5'- 10" .
• Bar Rack Angle Of Incline : 75° Degrees
• Bar Spacing : 1/4" Clear Openings.
• Bars : 1/4" UHMWPE TEETH.
• Peak Flow Capacity : 0.5 MGD
