The Equipment was provided as per with Standard Industry Design Practices.

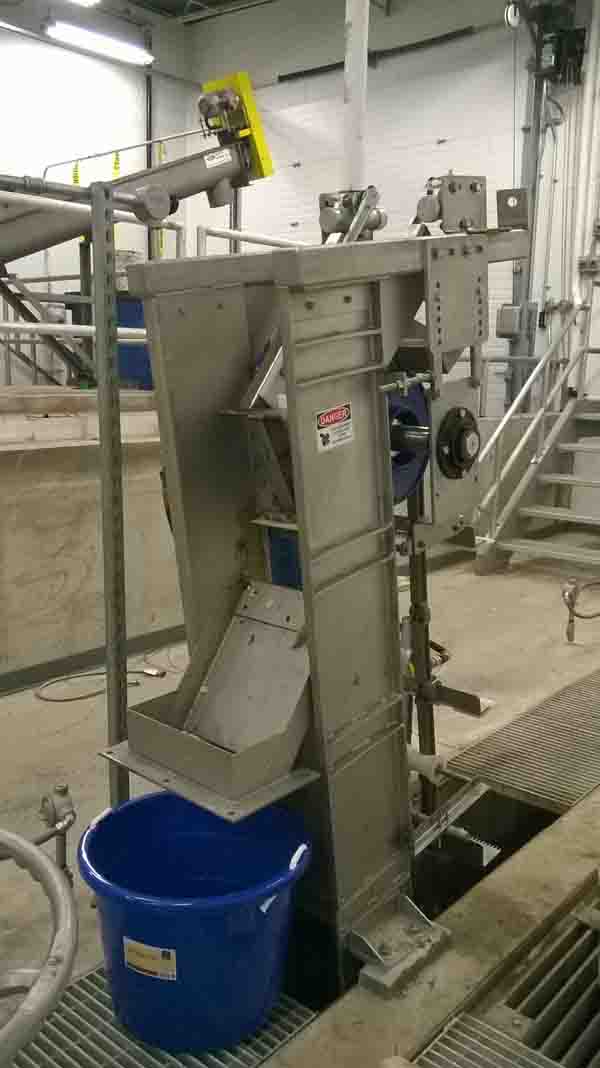

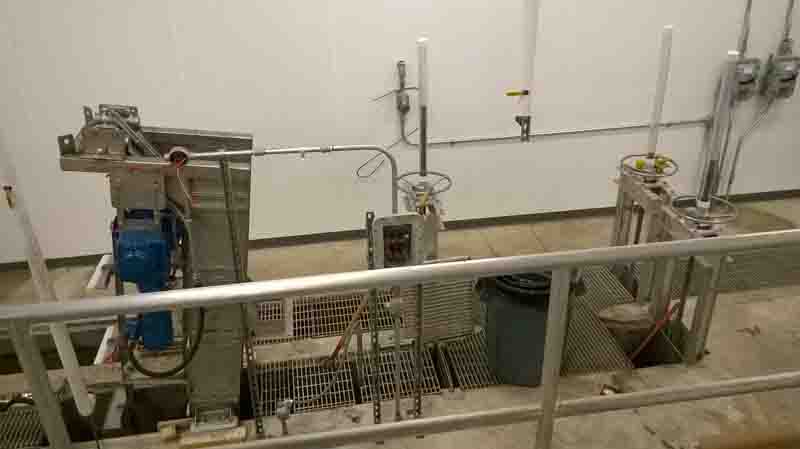

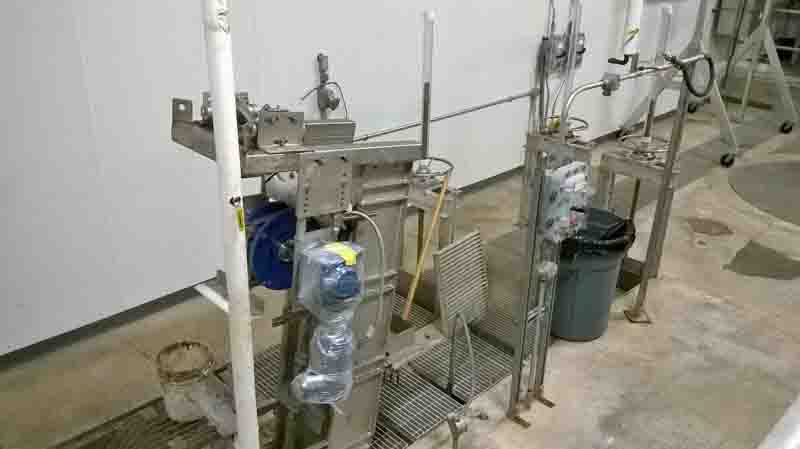

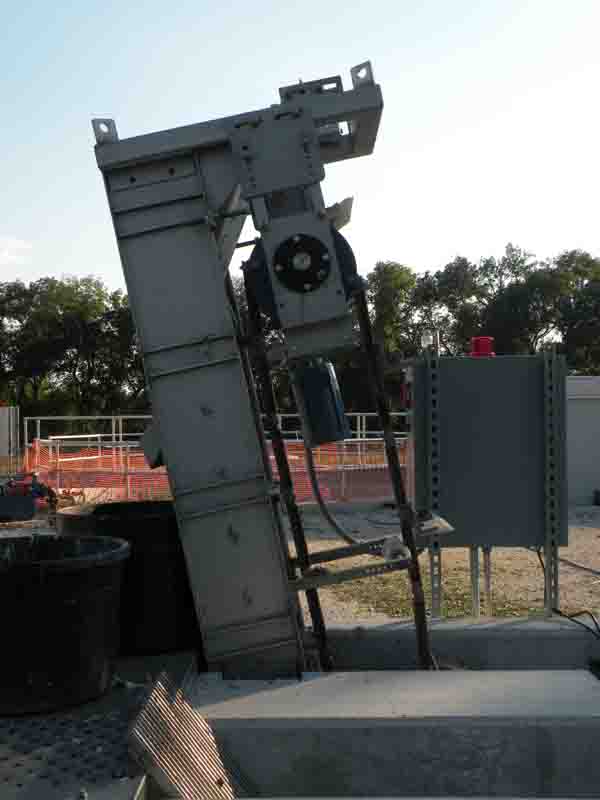

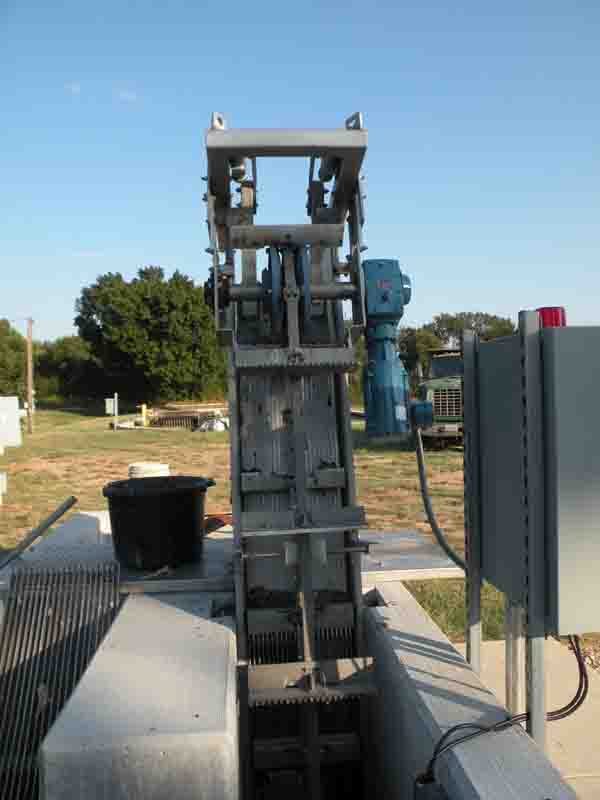

Bar Screen :-   FairField Model Lock Link,Primarily Constructed Of Type 304 Stainless Steel,And Designed as Follows:-

• Channel Width : 1'- 6'' ft.
• Channel Depth (Max): 3'-8.5'' ft.
• Lift : approx . 6'-8 7/8'' .
• Bar Rack Angle Of Incline : 80° Degrees
• Bar Spacing : 1/4" Clear Openings
• Bars : 1/4'' X 3/4'' Rectangular.
• Peak Flow Capacity : 3.1 MGD

The Equipment was provided as per with Standard Industry Design Practices.

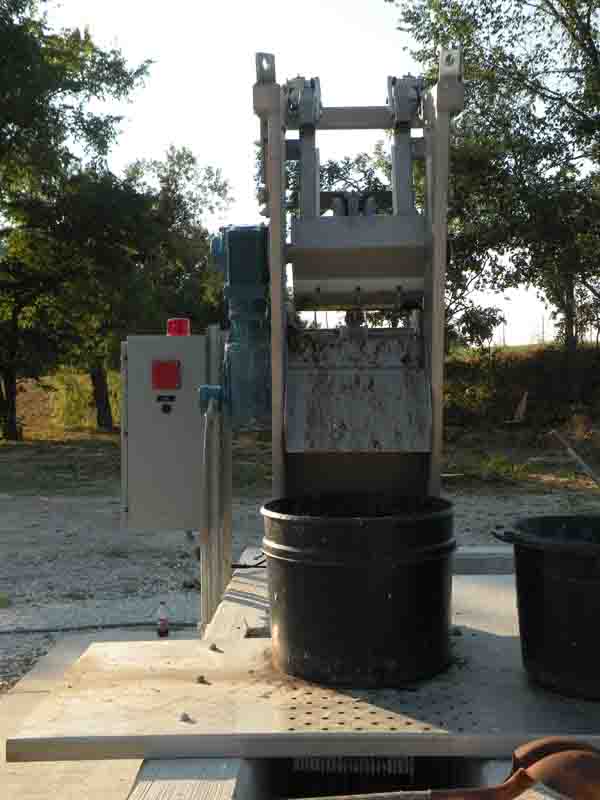

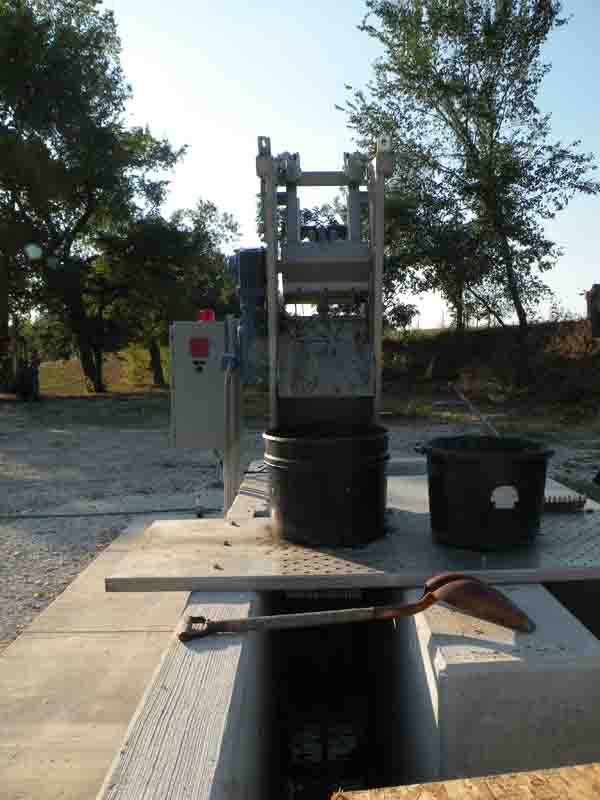

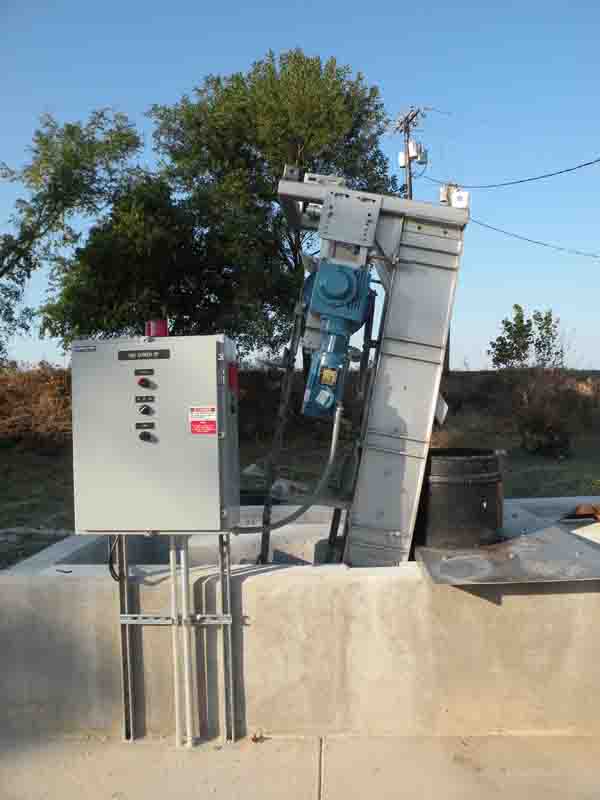

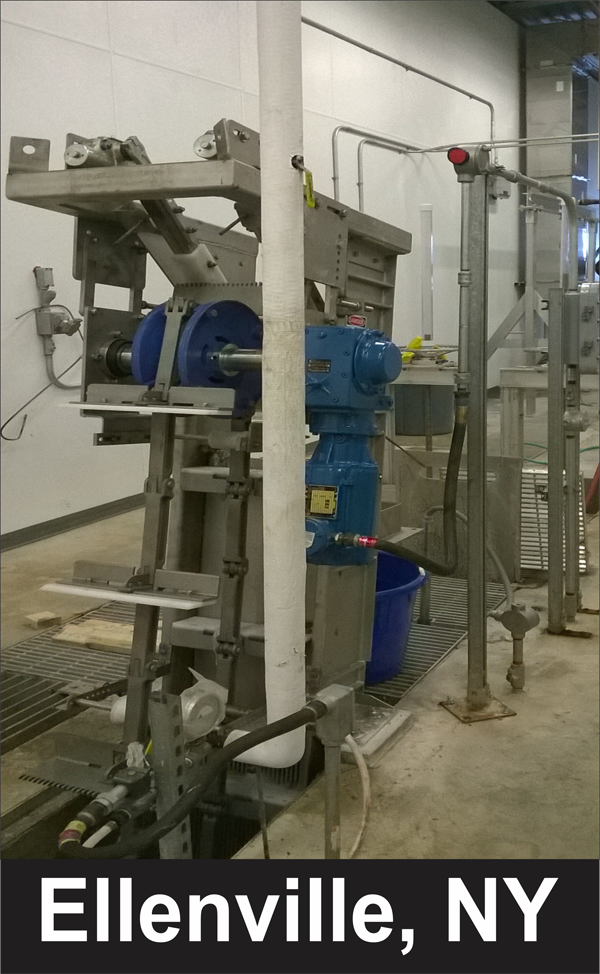

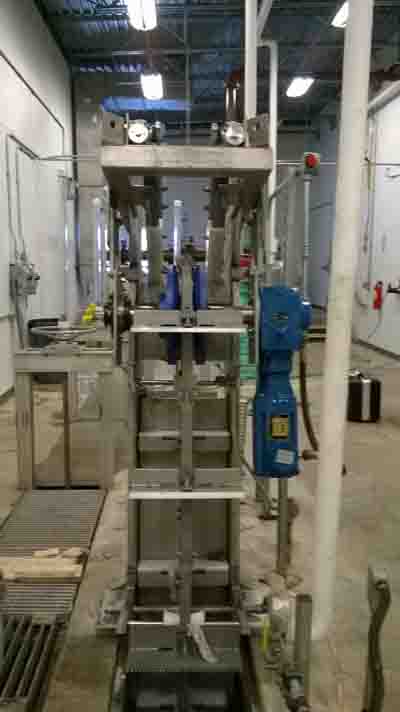

(1) Bar Screen :-   FairField Model Lock Link,Primarily Constructed Of Type 304 Stainless Steel,And Designed as Follows:-

• Channel Width : 1'- 8'' ft.
• Channel Depth : 3'- 6'' ft.
• Lift : approx . 7'- 0''.
• Bar Rack Angle Of Incline : 80 Degrees
• Bar Spacing : 1/2'' Clear Openings
• Bars : 1/4'' X 3/4'' Rectangular.
• Peak Flow Capacity : 1.23 MGD
