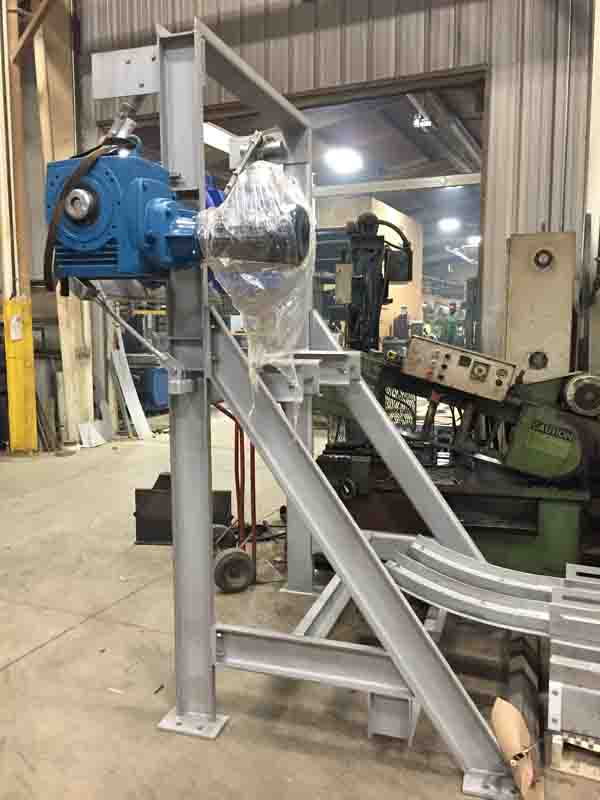

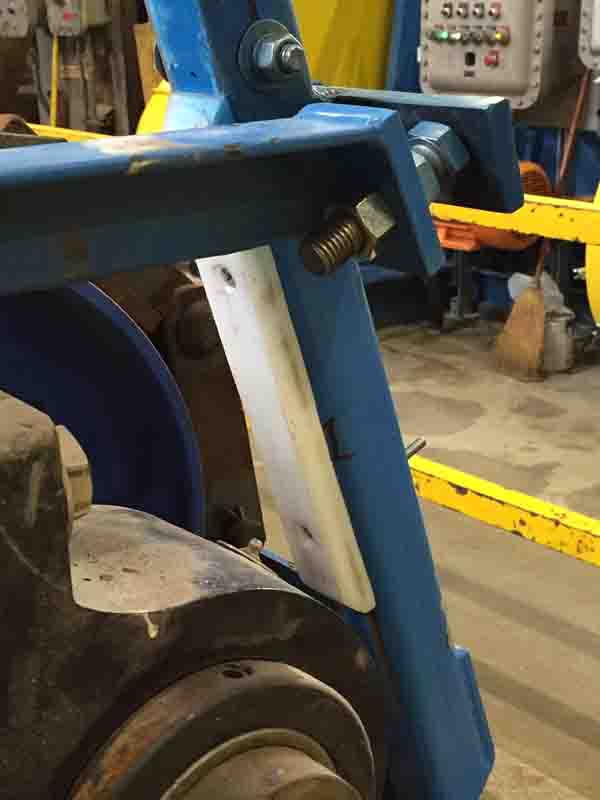

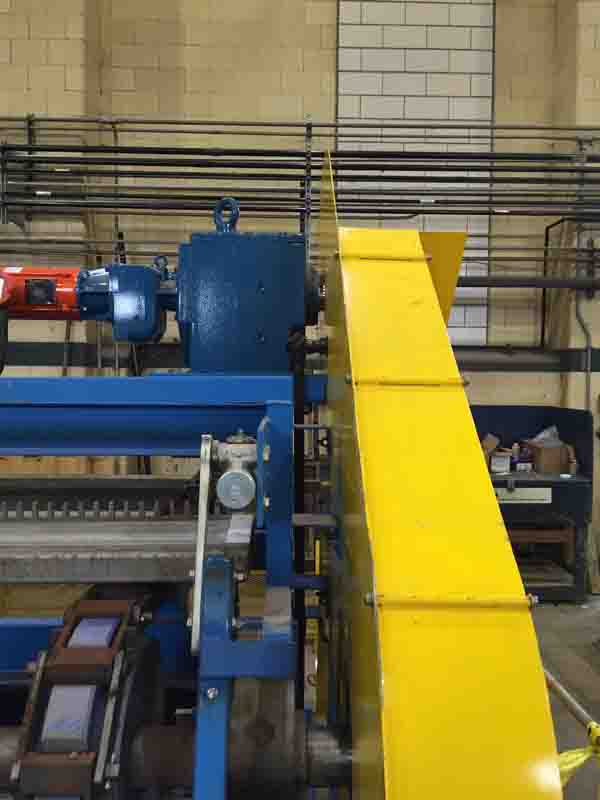

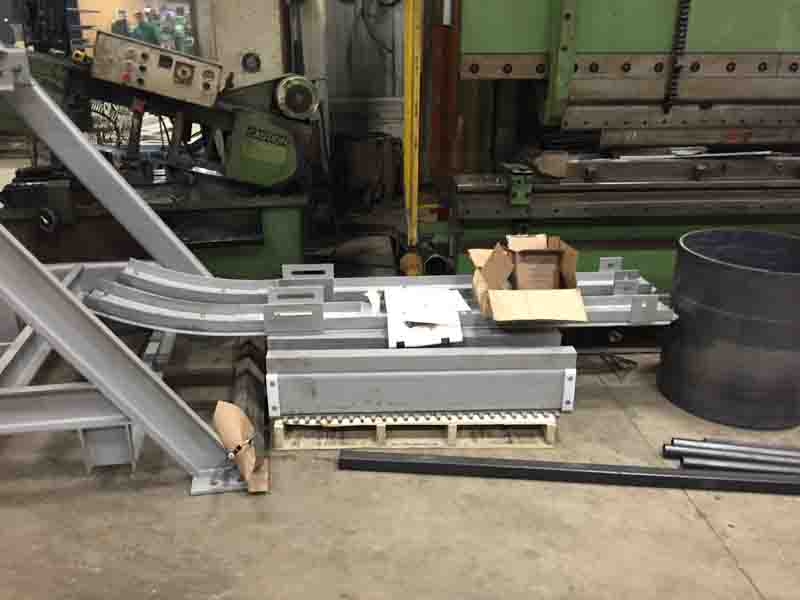

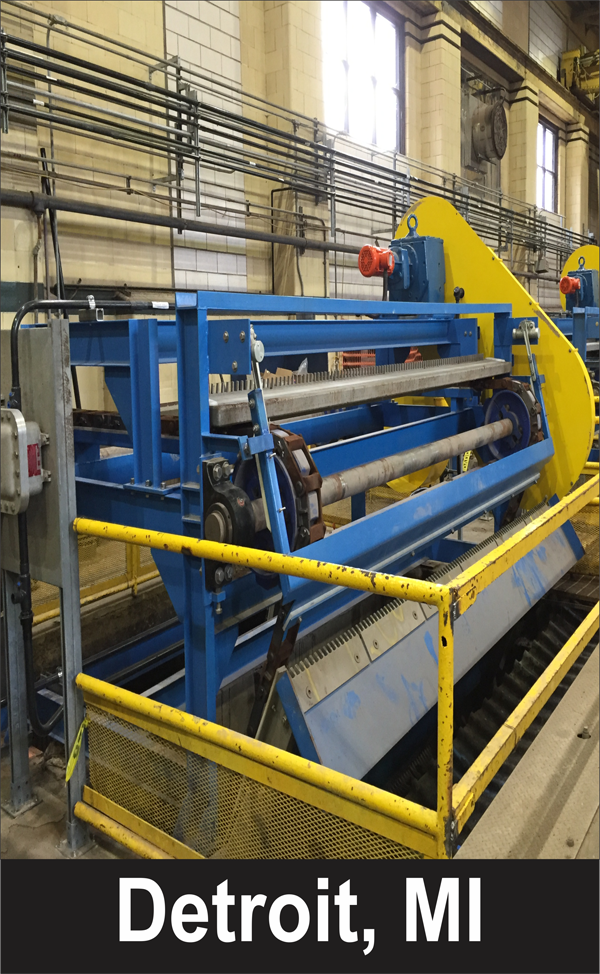

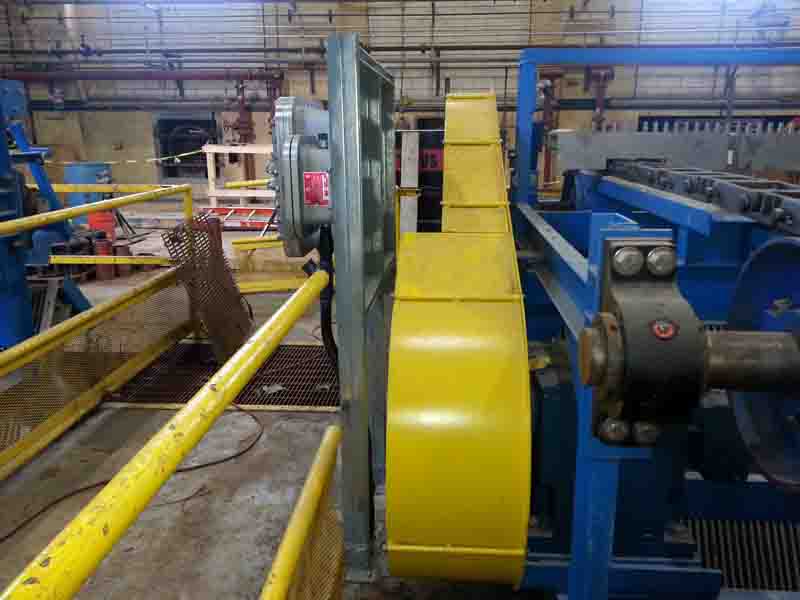

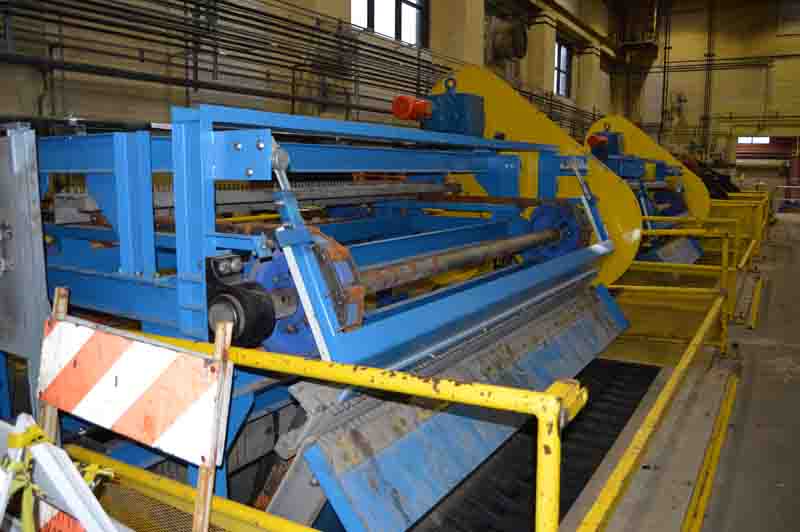

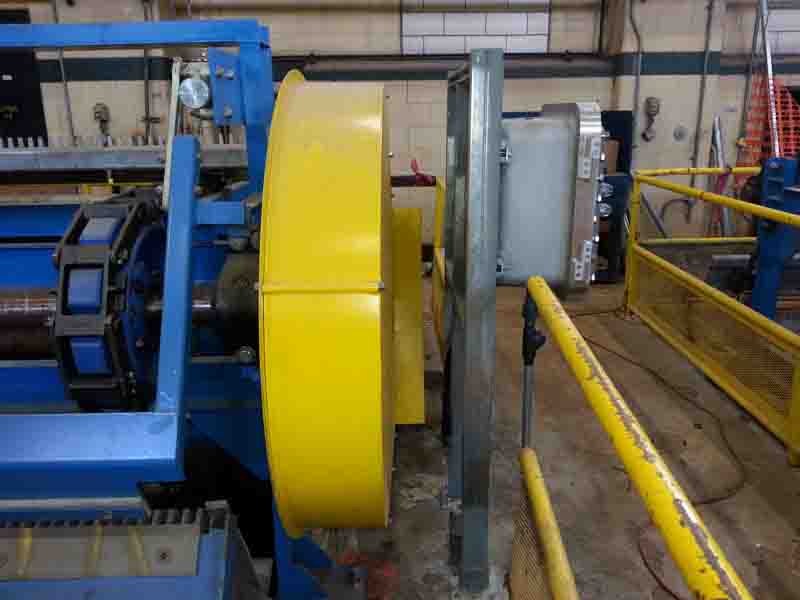

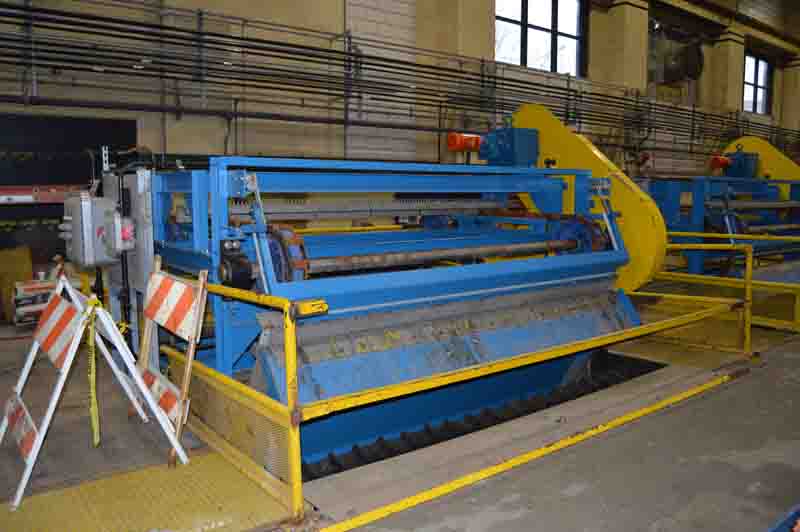

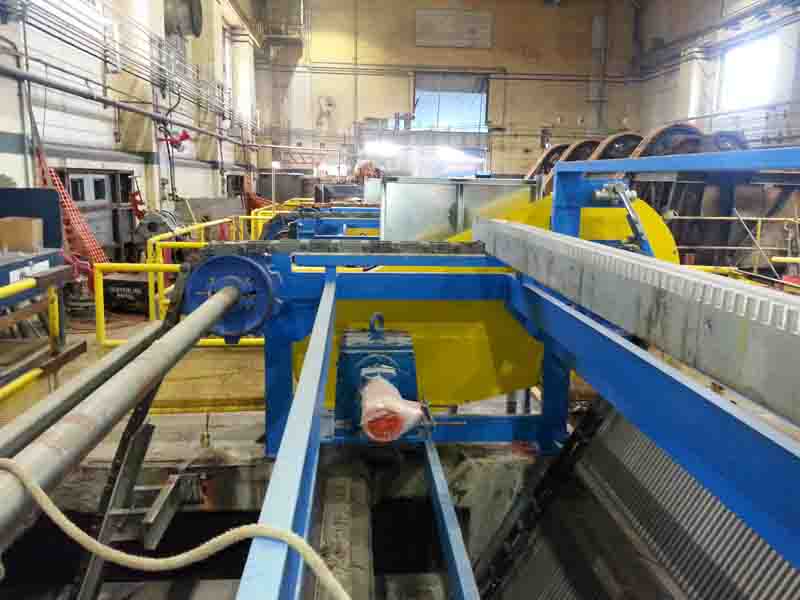

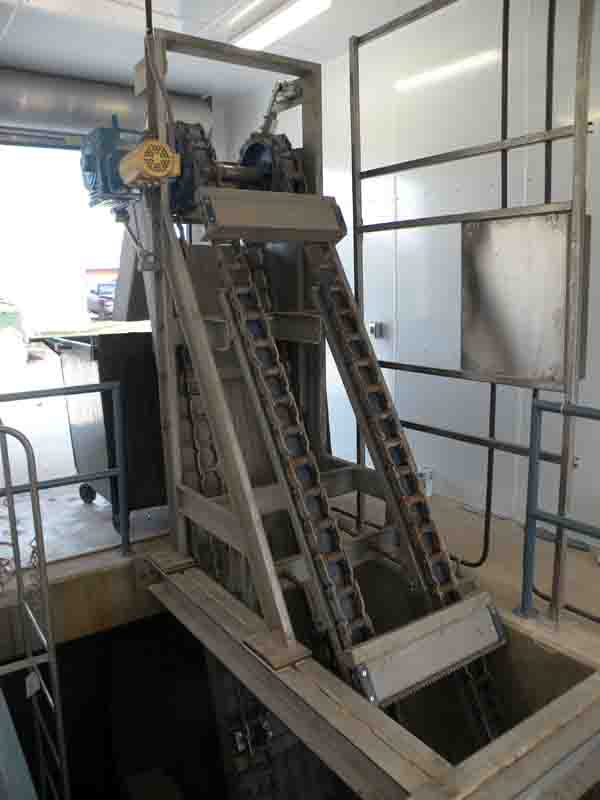

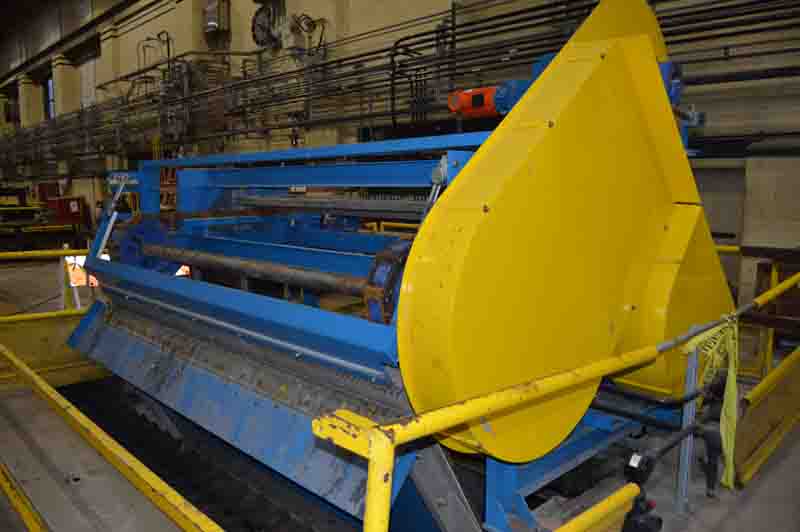

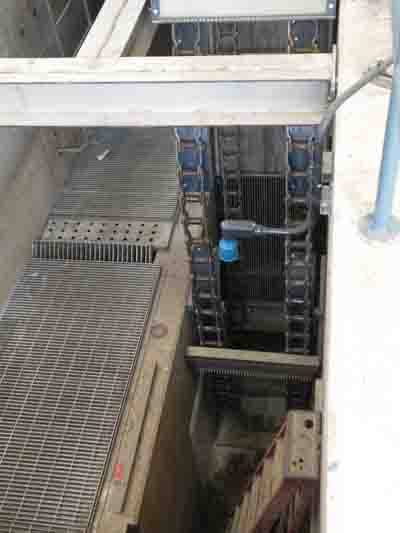

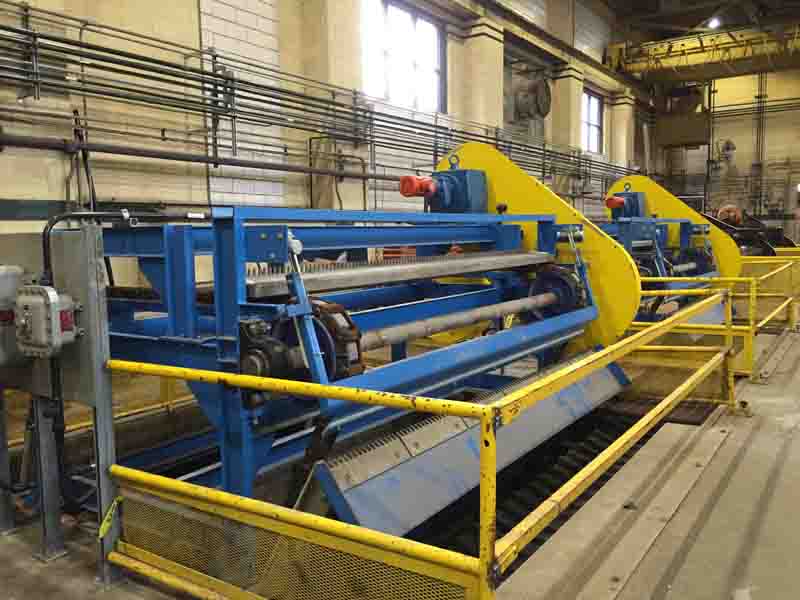

Catenary Bar The Equipment was provided as per with Standard Industry Design Practices. Bar Screen :- FairField Model Catenary Bar Screen,Primarily Constructed Of Type 316 Stainless Steel,And Designed as Follows:- Channel Width : 12 ft. Channel Depth (Max): 17' - 10" ft. Lift : approx . 19' - 2" . Bar Rack Angle Of Incline : 60 Degrees Bar Spacing : 3/4" Clear Openings Bars : 5/8" x 5/16" x 1-3/4" Trapezoidal. Peak Flow Capacity : 220 MGD The Equipment was provided as per with Standard Industry Design Practices. (1) Bar Screen :- FairField Model Catenary Bar Screen,Primarily Constructed Of Type 304 Stainless Steel,And Designed as Follows:- Channel Width : 3'- 0'' ft. Channel Depth : 4'- 6'' ft. Lift : approx . 7'- 1'' . Bar Rack Angle Of Incline : 70 Degrees Bar Spacing : 1/4'' Clear Openings Bars : 1/4'' × 3/16'' X 1-1/2'' Trapezoidal. Peak Flow Capacity : 5.7 MGD The Equipment was provided as per with Standard Industry Design Practices. (1) Bar Screen :- FairField Model Catenary Bar Screen,Primarily Constructed Of Type 304 Stainless Steel,And Designed as Follows:- Channel Width : 3'- 0'' ft. Channel Depth : 3'- 11'' ft. Lift : approx . 18'- 5 - 5/16'' . Bar Rack Angle : 75° Degrees Bar Spacing : 1/2'' Bars :1/4'' X 3/16'' X 1-1/2'' Trapezoidal. Peak Flow Capacity : 12 MGD The Equipment was provided as per with Standard Industry Design Practices. (2) Bar Screen :- FairField Model Catenary Bar Screen,Primarily Constructed Of Type 304 Stainless Steel,And Designed as Follows:- Channel Width :4'- 0'' ft. Channel Depth : 9'- 3''ft. Lift : approx . 14'- 4 1/8'' . Bar Rack Angle Of Incline : 75° Degrees Bar Spacing : 1'' Clear Openings Bars : 5/8'' X 5/16" X 1-3/4'' Trapezoidal. Peak Flow Capacity : 27 MGD
