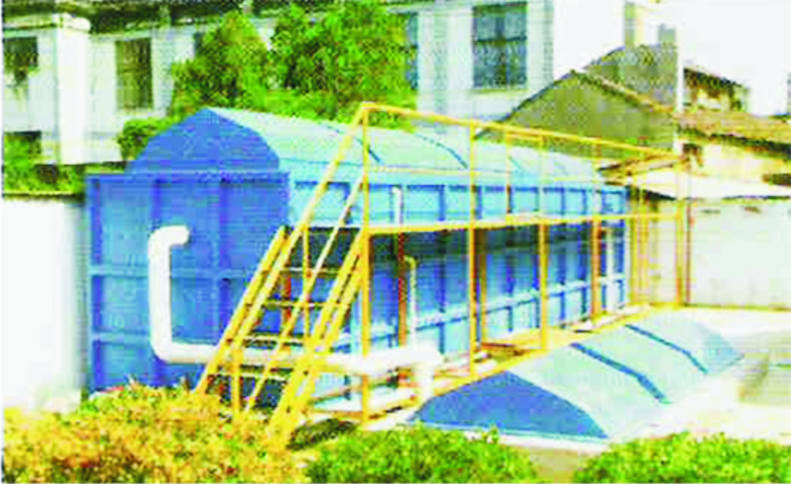

Integrated STP
Principle :
Due to formation of effective bio-films FSCI Integrated Sewage Treatment Plant has maximum capabilities of removing organic materials. The product uses rotating biological thin band, which has great transfer areas of gas or liquid.

Primary sedimentation tank:
The primary sedimentation tank with inclined plate in order to enhance the efficiency of solids removal, this area has no motivation parts so that there is no maintenance needed. The primary sedimentation tank can store sludge generated within 3-6 months.
Integrated STP
Integrated STP Bio-processing unit:
After the primary sedimentation tank, the water goes into an enclosed rotating bio-reactor, with adequate surface space and water pressure; the aerobic bacteria which consume organic matter can get full contact with the sewage. FSCI can achieve a high bio-adhesion (1000m2/m3 and above), which is 2-3 times more than other products. FSCI provides active in-house ventilation which does not need to additional aeration system. The bio-belt has a self-cleaning function, the water under biological treatment can automatically go back water inlet of the entire system, which can prevent the sludge from the primary rotting and breeding mosquitoes and flies, it can adjust the sewage flow to meet peak load and fast biological reproduction as well.
Applications
  • Apartment buildings
  • Shopping malls
  • Golf country clubs
  • Hotels
  • Factory areas
  • Public building
  • Schools
  • Hospitals
Features
  • Economical operations
  • Unique structure with compact design
  • Easy to maintain
  • Long service life
